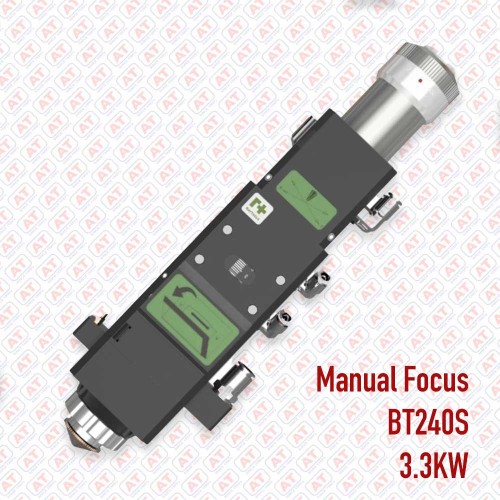

BT240S Manual Focus Laser Cutting Head
Power rating 3.3KW; Standard manual focus laser cutting.
Key Features:
- Weight: 4.5KG
Rs. 200,000.00
Out of Stock
BT240S Advanced Fiber Laser Cutting Head – Precision Meets Durability
Engineered for Clean Operation, Accurate Focus & Long-Term Performance
Introducing a high-performance automatic focusing fiber laser cutting head from RAYTOOLS AG, Switzerland — designed for modern manufacturing environments that demand precision, stability, and low maintenance. This model combines IP65-rated dust protection, dynamic zero-point focusing, efficient internal water cooling, and an optimized structural design to support high-speed, high-accuracy cutting across a wide range of materials.
Key Features
IP65 Dustproof Design – Clean Optics, Long Lifespan
- The optical path is fully enclosed with IP65-rated protection.
- This design minimizes the risk of lens contamination, ensuring cleaner cuts and extended component life, even in dusty or harsh environments.
Dynamic Zero-Point Focusing – Simplified Setup
- Adjustable focal point calibration lets you easily unify the zero focus position.
- Reduces downtime and the need for manual process tuning — ideal for repeatable, high-volume production.
High-Efficiency Internal Water Cooling
- Cooling is built directly into the focusing lens, collimating lens, and nozzle, efficiently managing heat during prolonged operation.
- Ensures thermal stability and prevents overheating, supporting consistent cutting performance.
Optimized Integrated Structure
- Compact, all-in-one body design improves durability and ease of installation.
- Upgraded QBH fiber interface eliminates issues like jamming or rusting caused by water leaks — increasing reliability in demanding conditions.
Technical Specifications
- Fiber Interface: QBH, QD
- Clear Aperture: 28 mm
- Collimating Lens Focal Length100 mm
- Focusing Lens Focal Length: 125 mm, 155 mm, 200 mm
- Collimating Protective Lens: ?24.9 mm × 1.5 mm
- Focusing Protective Lens: ?27.9 mm × 4.1 mm
- Nozzle Types: Single-layer, double-layer, custom/non-standard
- Nozzle Aperture Sizes: 0.8 mm – 5.0 mm (0.1–0.5 mm steps)
- Assist Gas Pressure: ?25 bar
- Weight: Approx. 3.5 kg
